Product Description

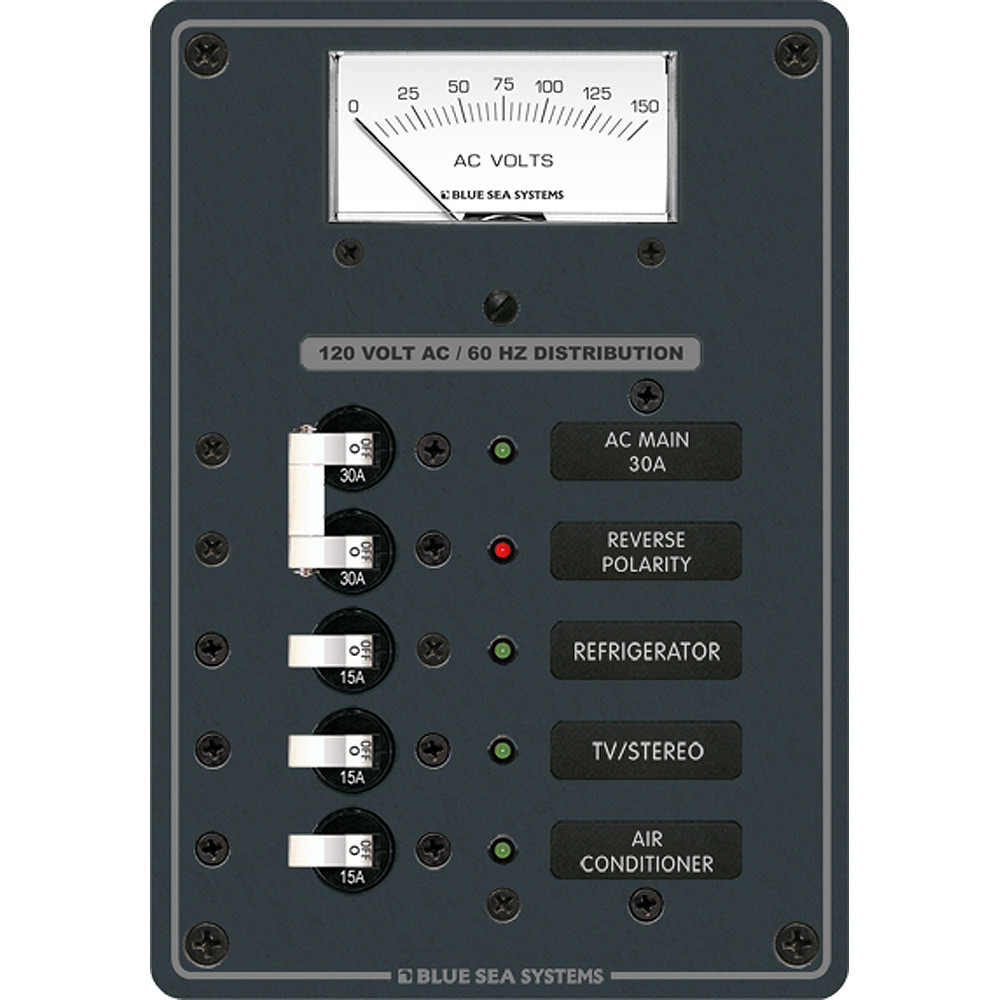

8043 AC Main +3 Positions Toggle Circuit Breaker Panel - White Switches
Features:
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Specifications:
- Positions: 3
- Nominal Voltage: 120v AC
- Height: 7.5"
- Width: 5.25"
Included:
- (1) 8031 Basic AC Panel Label Set - 30 Labels
- (4) 8034 LED - 120v AC Green
- (1) 8066 LED - 120v AC Red
- (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
- (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)
- (1) 9353 AC Voltmeter - 0 to 150v AC (Meter)
