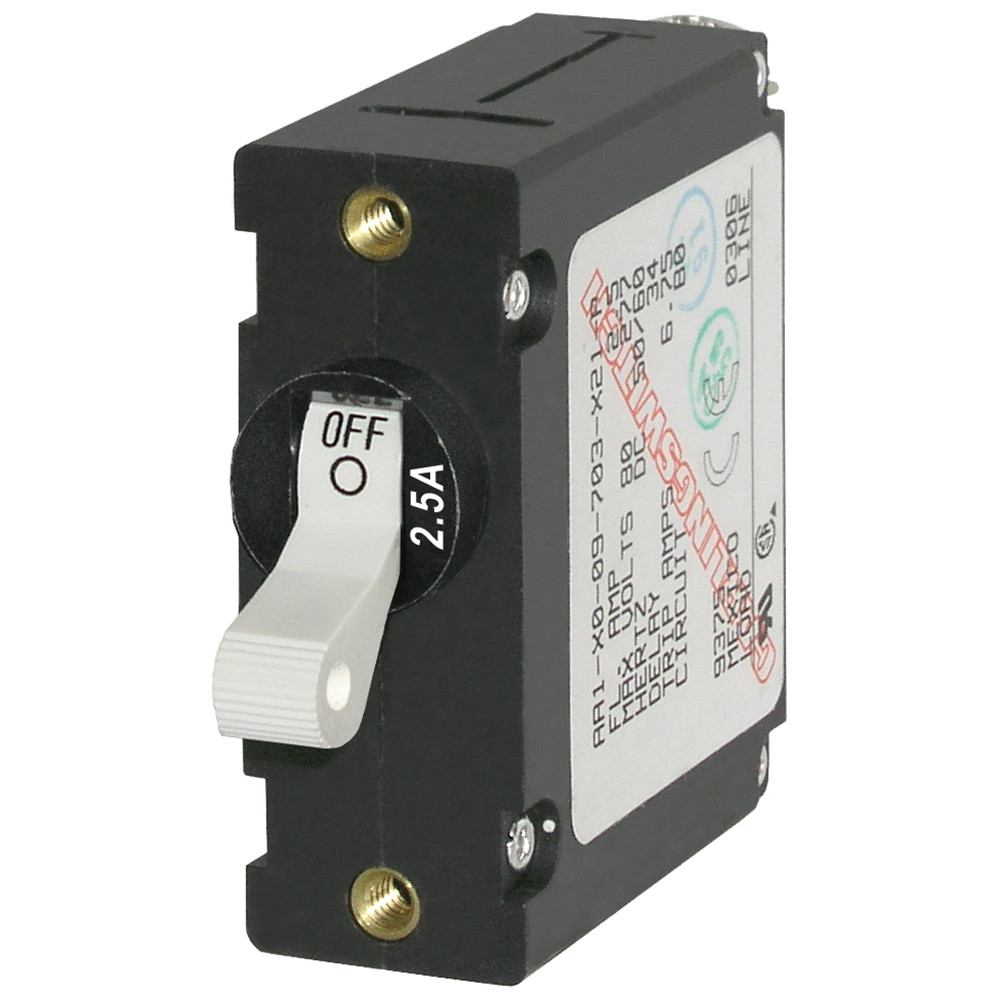

Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A

Product Description

• Meets American Boat and Yacht Council (ABYC) standards

• The industry standard circuit breaker for Blue Sea Systems" electrical panels

• Combines swtiching and circuit protection into a single device

• "Trip Free" design cannot be held "ON" during fault current condition

• Amperage: 2.5A AC / 2.5A DC

• Color: White

• Actuator Style: Toggle

• Poles: 1

• Maximum Voltage: 250V AC / 65V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.17lb (0.08 kg)
