Product Description

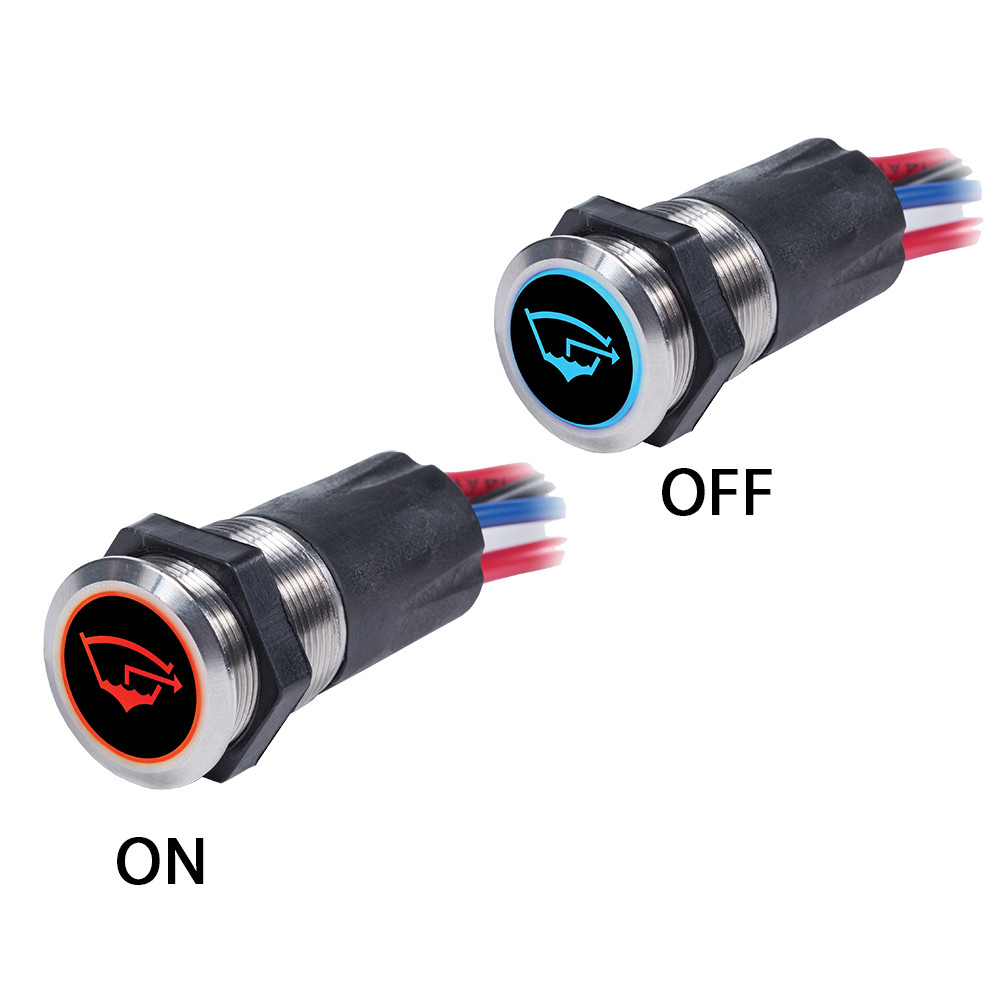

4181 Backlit Push Button Switch OFF/(ON) - 15A
Features:
- Backlit button is blue when OFF and red when ON
- Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
- Additional 50 ICON label kit sold separately
Specifications:
- Action: OFF-(ON)
- Amperage: 15A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum Voltage: 15V DC
- Maximum LED Operating Current: 20mA
- Switching Cycles: 10,000
- Temperature Range: -20°C to 55°C
- Termination: 3" - Bare Wire Pigtail
- Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG
