Product Description

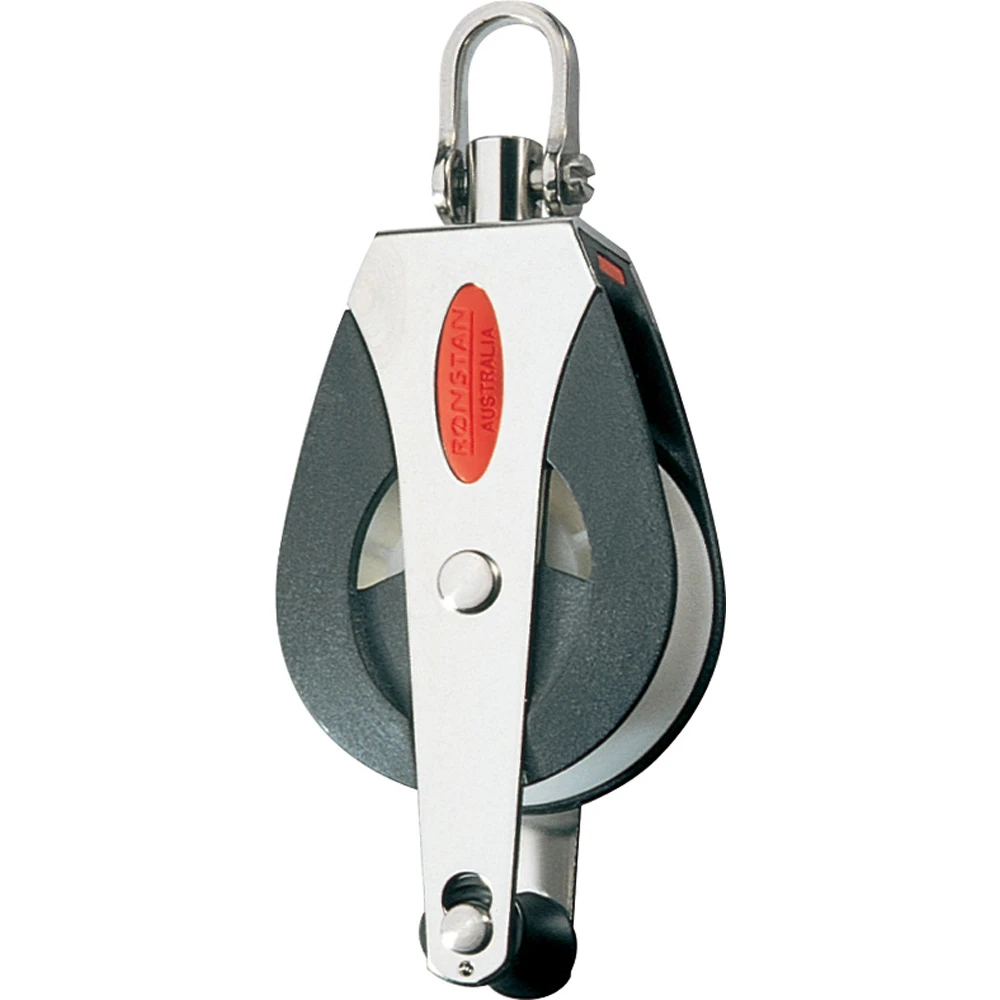

Series 50 All Purpose Block - Single - Becket - Universal HeadAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools
Features:
- Exceptionally high working loads
- Low maintenance, long service life
- Self lubricating sheave
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
- Snap fit removable becket pin
Applications:
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10M(33')
Materials:
- Nylatron® sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and U.V. resistant, fiber reinforced Nylon cheeks
Specifications:
Sheave Ø: 50mm(2")
Max. Rope Ø: 12mm(1/2")
Max. Pin Ø: 5mm(3/16")
M.W.L.: 750kg(1,650lbs)
B. L.: 1,500kg(3,310lbs)
Weight: 118g(4.1oz)
